CH HYGIENIC DESIGN ENCLOSURES

Low voltage watertight stainless steel enclosures with a 30° sloping rain canopy. Designed for use in harsh environments with very high temperatures, they are ideal for the food, chemical and petrochemical industries. These enclosures can be customized with a range of standard accessories, special machining and ad hoc or co-designed solutions to customers’ requests.

SAFE ROUNDED EDGES. To prevent accidental cuts when the enclosures are handled all the edges are bent and the corners blunted.

POLYURETHANE GASKET. Operating temperature range:-40°C +90°C.

REAR BUSHING. For fixing the enclosure to the wall (or directly onto equipment) without the need for machining that could alter the protection rating.

DIE-CAST HINGES in stainless steel with opening greater than 120°.

Point to each picture to read its caption

SAFE ROUNDED EDGES. To prevent accidental cuts when the enclosures are handled all the edges are bent and the corners blunted.

POLYURETHANE GASKET. Operating temperature range:-40°C +90°C.

REAR BUSHING. For fixing the enclosure to the wall (or directly onto equipment) without the need for machining that could alter the protection rating.

DIE-CAST HINGES in stainless steel with opening greater than 120°.

Would you like to download the product data sheet?

TECHNICAL CHARACTERISTICS

Approval	EN 62208: IP66 IK10 UL508A - CSA C22.2 n°. 14-13 NEMA Type 1,12,4,4X
Materials	Stainless steel: AISI 304 / WNr. 1.4301. On request: AISI 316 / WNr. 1.4404. Finish: Scotch-Brite. Thickness: from 1,2 mm. Cable entry plate: galvanised sheet metal. Thickness: 2,5 mm.
Body	Single-body construction with incorporated 30° sloping rain canopy. Bent and continuously welded; M6 blind bushes on the body for wall attachment without the need for machining.
Door	AISI 304 stainless steel concealed hinges; door opening greater than 120°. Chromed zamak 3mm double bit lock (on demand, AISI 304 and different inserts). Perimeter polyurethane gasket (temp.range -40°C +90°C).
Provided	Grounding accessories and cardboard packing
Customization	Drilling to drawings and ad hoc solutions.
Accessories	Cable entry plate. Wall brackets. Lock systems. Print pocket.

MAXIMUM CAPACITIES

DOOR	STANDARD BACK PLATE	2 WALL BRACKETS	TOTAL CAPACITY

Dimensional table available in the pdf version of the general catalogue.

DIMENSION TABLE

ENCLOSURES DIMENSIONS				CODE	DOORS N°	WEIGHT	MOUNTING PLATE DIMENSIONS			MOUNTING PLATE CODE	DRILLING AREA					APPROVALS
B	H	Hx	P				B1	H1	P1		B2	H2	B3	H3	P3	EN62208	UL/CSA
mm	mm	mm	mm			Kg	mm	mm	mm		mm	mm	mm	mm	mm	EN60529-EN62262	UL50E / CSA 22.2
300	400	543	210	CHA03004021	1	11,80	347	513	194	CPE030040	349	503	282	382	165	IP66 – IK10	1,12,4,4X
400	400	543	210	CHA04004021	1	13,60	347	513	194	CPE040040	349	503	382	382	165	IP66 – IK10	1,12,4,4X
400	500	643	210	CHA04005021	1	15,10	447	613	194	CPE040050	449	603	382	482	165	IP66 – IK10	1,12,4,4X
400	600	766	250	CHA04006025	1	19,10	547	736	234	CPE040060	549	726	382	582	205	IP66 – IK10	1,12,4,4X
500	500	643	210	CHA05005021	1	17,20	447	613	194	CPE050050	449	603	482	482	165	IP66 – IK10	1,12,4,4X
500	500	695	300	CHA05005030	1	22,90	447	665	284	CPE050050	449	655	482	482	255	IP66 – IK10	1,12,4,4X
500	700	866	250	CHA05007025	1	23,30	647	836	234	CPE050070	649	826	482	682	205	IP66 – IK10	1,12,4,4X
600	600	766	250	CHA06006025	1	23,90	547	736	234	CPE060060	549	726	582	582	205	IP66 – IK10	1,12,4,4X
600	800	995	300	CHA06008030	1	33,50	747	965	284	CPE060080	749	955	582	782	255	IP66 – IK10	1,12,4,4X
800	1000	1195	300	CHA08010030	1	54,00	947	1165	284	CPE080100	949	1155	781	981	254	IP66 – IK10	1,12,4,4X
800	1200	1395	300	CHA08012030	1	60,70	1147	1365	284	CPE080120	1149	1355	781	1181	254	IP66 – IK10	1,12,4,4X
800	1200	1452,5	400	CHA08012040	1	73,30	1147	1422,5	384	CPE080120	1149	1412,5	781	1181	354	IP66 – IK10	1,12,4,4X

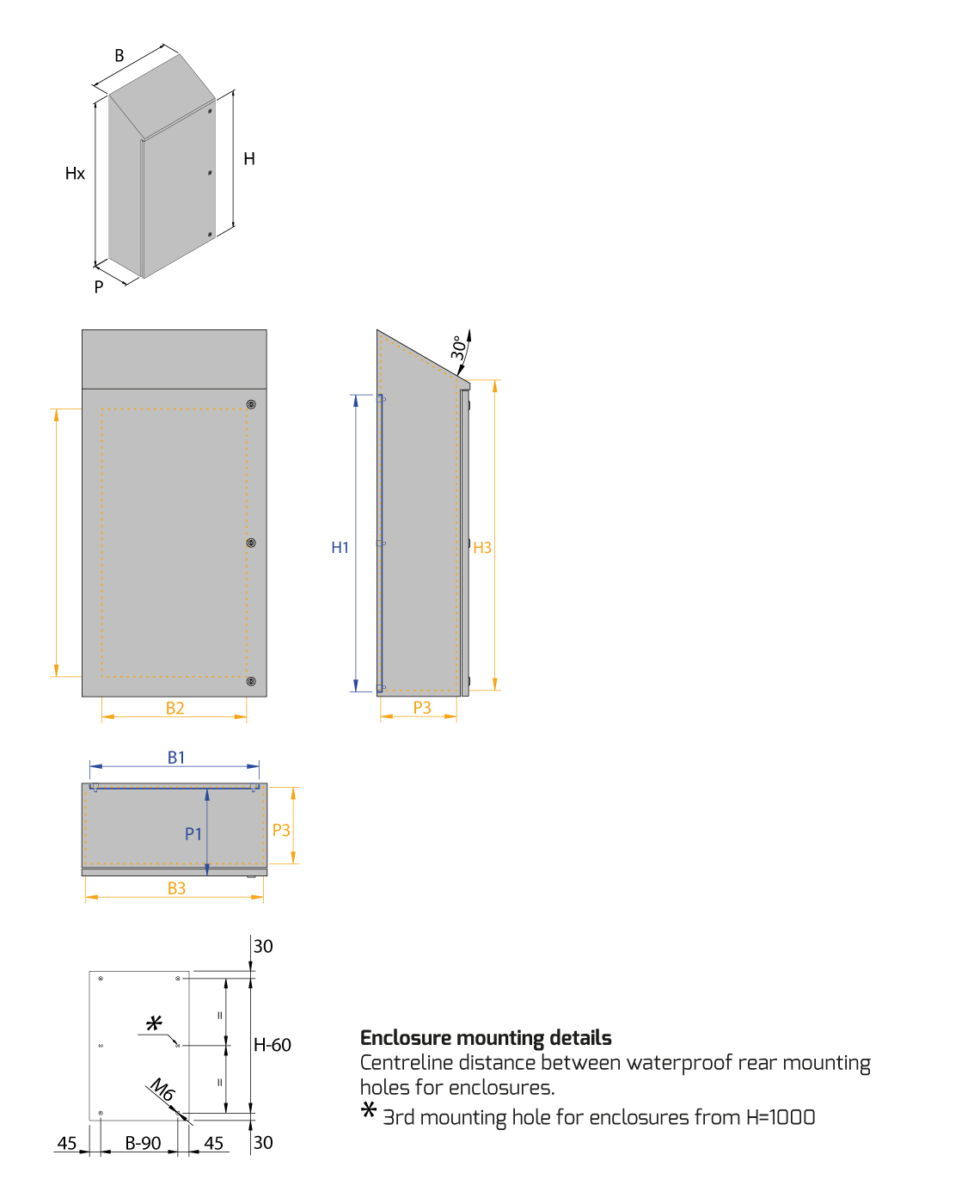

TECHNICAL DRAWING

		Mounting plate dimensions	Door drilling area	Enclosure drilling area
Enclosure width	B	B1	B2	B3
Enclosure height	H	H1	H2	H3
Enclosure depth	P	P1*		P3

* Usable depth between mounting plate and door
