MC MODULAR FREE-STANDING ENCLOSURES WITH SOLID DOOR

A wide range of accessories and special customization solutions, together with meticulously designed details and technical solutions for improved functionality, safety and structural sturdiness are the key elements that make the Compex range of modular enclosures with solid door the safest place to keep large electrical equipment and components. Made of stainless steel, they are ideal for harsh environments and particularly suitable for use in the food, pharmaceutical, chemical and naval industries, where maximum resistance to aggressive substances is required.

MICRO-CAST HINGES. Stainless steel precision-cast hinges with 120 and 180 degree opening, for enclosure doors that fit entirely within the enclosure opening.

HIGH SEAL DOOR. Designed to ensure maximum sealing efficiency between the door and the enclosure body.

BOTTOM PANEL WITH CABLE ENTRY SYSTEM Designed to make the most of the space available.

SAFE ROUNDED EDGES. To prevent accidental cuts when wiring the enclosure all the edges are bent and the corners blunted.

Point to each picture to read its caption

MICRO-CAST HINGES. Stainless steel precision-cast hinges with 120 and 180 degree opening, for enclosure doors that fit entirely within the enclosure opening.

HIGH SEAL DOOR. Designed to ensure maximum sealing efficiency between the door and the enclosure body.

BOTTOM PANEL WITH CABLE ENTRY SYSTEM Designed to make the most of the space available.

SAFE ROUNDED EDGES. To prevent accidental cuts when wiring the enclosure all the edges are bent and the corners blunted.

Would you like to download the product data sheet?

TECHNICAL CHARACTERISTICS

Approval	EN 62208: IP66 IK10 UL508A - CSA C22.2 n°. 14-13 NEMA Type 1,12,4,4X
Materials	Stainless steel: AISI 304 / WNr. 1.4301. On request: AISI 316 / WNr. 1.4404. Finish: Scotch-Brite Thickness: Door and back panel: form 1,5 mm Canopy and bottom panel: from 1,5 mm Side panels: from 1,5 mm Cable entry plate: galvanised sheet metal Thickness: from 2,5 mm
Body	Multiple bent, drilled profile welded onto a micro-cast tripod. Removable top and bottom panel obtained from bent, welded metal sheets.
Door	AISI 304 stainless steel concealed hinges; door opening greater than 120°. (180° opening hinges on request) Cremone bolts on 4 points, ergonomic handle with 3 mm double bit lock (on demand AISI 304 and different inserts). Polyurethane gasket (temp. range -40°C +90°C). A drilled tubular frame strengthens the door and is used to install accessories (from B600 mm up). Double door version: double hinged doors (with RH main door).
Provided	Grounding accessories and pallet packing.
Customization	Assembly of bayed enclosure configurations, custom drilling, customized solutions.
Accessories	180° opening door. Mounting plate: inserted from the side on guides. Side panels. Cable entry plates – double cable gland plates. Plinths: h100 / 200 mm with closed bottom panel and feet. Rain canopy. 30° sloping canopy. Inner door. Modular system.

MAXIMUM CAPACITIES

DOOR	STANDARD BACK PLATE	SIDE PANEL	TOTAL CAPACITY

Dimensional table available in the pdf version of the general catalogue.

DIMENSION TABLE

CABINET DIMENSIONS			CODE	DOORS N°	WEIGHT	MOUNTING PLATE DIMENSIONS			MOUNTING PLATE CODE	DRILLING AREA					APPROVALS
B	H	P				B1	H1	P1		B2	H2	B3	H3	P3	EN62208	UL/CSA
mm	mm	mm			Kg	mm	mm	mm		mm	mm	mm	mm	mm	EN60529-EN62262	UL50E / CSA 22.2
400	1800	500	MCA04018050	1	54,90	-	-	-	-	278	1685	233	1724	392	IP66 – IK10	1,12,4,4X
400	2000	500	MCA04020050	1	59,10	-	-	-	-	278	1885	233	1924	392	IP66 – IK10	1,12,4,4X
400	1800	600	MCA04018060	1	55,50	-	-	-	-	278	1685	233	1724	492	IP66 – IK10	1,12,4,4X
400	2000	600	MCA04020060	1	59,40	-	-	-	-	278	1885	233	1924	492	IP66 – IK10	1,12,4,4X
600	1800	500	MCA06018050	1	72,30	600	1720/1675	310	MPE060180	351	1685	433	1724	392	IP66 – IK10	1,12,4,4X
600	2000	500	MCA06020050	1	79,20	600	1920/1875	310	MPE060200	351	1885	433	1924	392	IP66 – IK10	1,12,4,4X
600	1800	600	MCA06018060	1	74,40	600	1720/1675	410	MPE060180	351	1685	433	1724	492	IP66 – IK10	1,12,4,4X
600	2000	600	MCA06020060	1	79,80	600	1920/1875	410	MPE060200	351	1885	433	1924	492	IP66 – IK10	1,12,4,4X
800	1800	500	MCA08018050	1	88,50	800	1720/1675	310	MPE080180	551	1685	633	1724	392	IP66 – IK10	1,12,4,4X
800	2000	500	MCA08020050	1	97,20	800	1920/1875	310	MPE080200	551	1885	633	1924	392	IP66 – IK10	1,12,4,4X
800	1800	600	MCA08018060	1	89,40	800	1720/1675	410	MPE080180	551	1685	633	1724	492	IP66 – IK10	1,12,4,4X
800	2000	600	MCA08020060	1	97,80	800	1920/1875	410	MPE080200	551	1885	633	1924	492	IP66 – IK10	1,12,4,4X
1000	1800	500	MCA10018050	1	113,40	1000	1720/1675	310	MPE100180	751	1685	833	1724	392	IP66 – IK10	1,12,4,4X
1000	2000	500	MCA10020050	1	124,50	1000	1920/1875	310	MPE100200	751	1885	833	1924	392	IP66 – IK10	1,12,4,4X
1000	1800	600	MCA10018060	1	114,30	1000	1720/1675	410	MPE100180	751	1685	833	1724	492	IP66 – IK10	1,12,4,4X
1000	2000	600	MCA10020060	1	125,40	1000	1920/1875	410	MPE100200	751	1885	833	1924	492	IP66 – IK10	1,12,4,4X
1200	1800	500	MCA12018050	2	125,70	1200	1720/1675	310	MPE120180	351 x 2	1685	433 x 2	1724	392	IP55 – IK10	1,12
1200	2000	500	MCA12020050	2	137,40	1200	1920/1875	310	MPE120200	351 x 2	1885	433 x 2	1924	392	IP55 – IK10	1,12
1200	1800	600	MCA12018060	2	128,10	1200	1720/1675	410	MPE120180	351 x 2	1685	433 x 2	1724	492	IP55 – IK10	1,12
1200	2000	600	MCA12020060	2	139,20	1200	1920/1875	410	MPE120200	351 x 2	1885	433 x 2	1924	492	IP55 – IK10	1,12
1600	1800	500	MCA16018050	2	158,40	1600	1720/1675	310	2 x MPE080180	551 x 2	1685	633 x 2	1724	392	IP55 – IK10	1,12
1600	2000	500	MCA16020050	2	173,40	1600	1920/1875	310	2 x MPE080200	551 x 2	1885	633 x 2	1924	392	IP55 – IK10	1,12
1600	1800	600	MCA16018060	2	161,10	1600	1720/1675	410	2 x MPE080180	551 x 2	1685	633 x 2	1724	492	IP55 – IK10	1,12
1600	2000	600	MCA16020060	2	174,90	1600	1920/1875	410	2 x MPE080200	551 x 2	1885	633 x 2	1924	492	IP55 – IK10	1,12

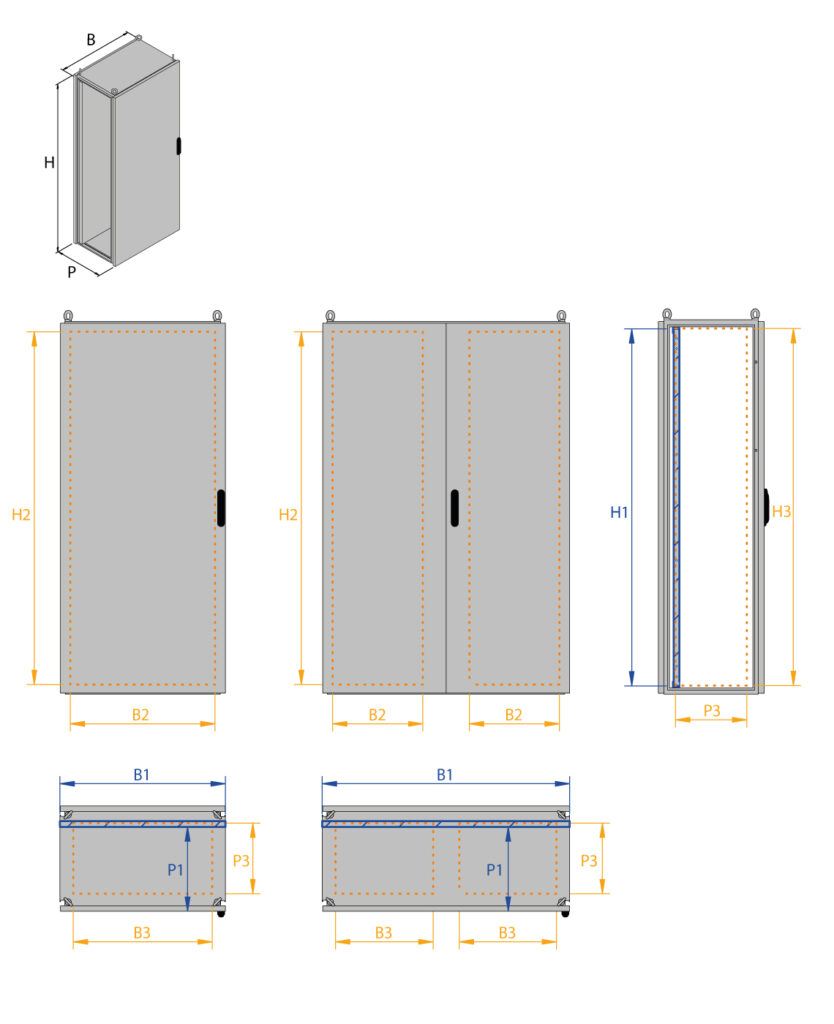

TECHNICAL DRAWING

		Mounting plate dimensions	Door drilling area	Enclosure drilling area
Enclosure width	B	B1	B2	B3
Enclosure height	H	H1	H2	H3
Enclosure depth	P	P1*		P3

* Usable depth between mounting plate and door
